High quality steel wire hydraulic oil pump hose

FOB Reference Price:Get Latest Price
US $0.86-36.9 / Meters | 500 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
MYWELL
Model Number:
KL-H-012
material:
rubber
inner tube:
oil resistant
reinforcement:
steel wire spiral layers
Type:
oil hose
temperature:
-40~+100℃
feature:
anti-aging , oil and heat resistant
application:
delivery of disel oil , lubricating, water
roll:
100 meter
sample:
free sample
certification:
ISO9001, ISO14001, OHSAS18001
Supply Ability
Supply Ability:
100000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
in plastic bags
Port
Qingdao
Lead Time :
according to quantity

    High quality steel wire hydraulic oil pump hose





Product Description





material rubber, steel wire
standard GB, EN , DIN ,SAE
type steel wire hydrauic hose
tubehigh oil , fuel ,petrol hydraulic fluids
reinforcementsteel wire winding layers
size 3/16"~5"
temperature-40~+120℃
surface cloth or smooth surface
sample free sample
business manufacturer
certification ISO9001, ISO14001, OHSAS18001
application delivery of diesel oil ,lubricating ,water,other mineral oil
package in plastic bags
delivery within 2 weeks or according to quantity

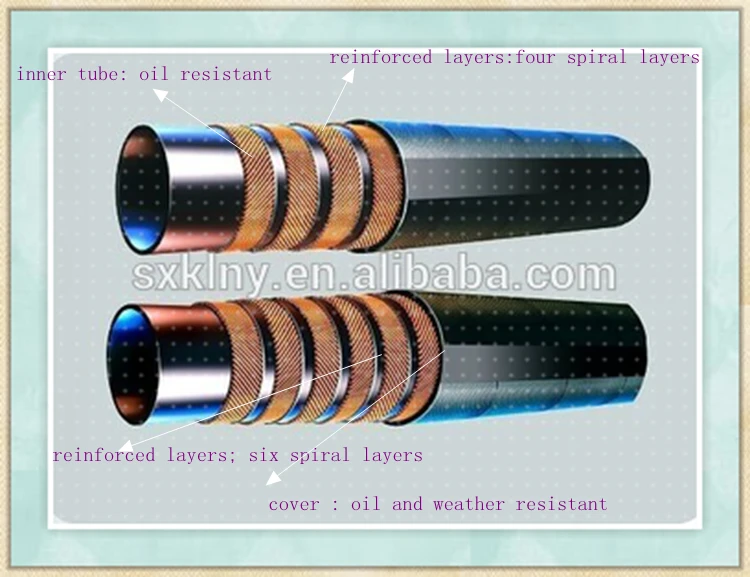

Construction :

  inner tube : oil resistant;

  reinforcement : steel wire winding layers;

  cover : oil and weather resistant.



Application :

  used the petroleum base, supplide  to  mine and mechinery industry ,within  a temperature -40~+120℃ ,the appear ance is black smooth and black cloth grain.



 Four steel wire spiral rubber hose

size(mm)inchI.D(mm)reinforcement(mm)O.D(mm)
W.P(Mpa)

P.P(Mpa)
B.P(Mpa)B.R
(mm)
10 3/810±0.519.2±0.823.5±170105210160
13 1/213±0.522.2±0.826.5±16090180210
16 5/816±0.526±0.829.5±15582.5165260
19 3/419±0.530±0.834.5±1.54669140280
22 7/822±0.833±0.836.5±1.54060120320
251   25±0.836±0.840.5±1.53857114360
321 1/432±0.844±0.848.5±1.53451102460
381 1/238±150.8±0.855.5±1.52537.575560
45 1 3/445±157.8±162.5±1.52334.569660
512   51±163.8±168.5±1.5203070720
642 1/264±176.8±1.582±0.2203070980
763   76±189.6±1.594.5±21624481200











six steel wire spiral rubber hose

size(mm)inchI.DMin(mm)reinforcementMin(mm)O.D
W.P(Mpa)

P.P(Mpa)

B.P(Mpa)

minB.R(mm)
Max(mm)
10 3/810±0.521.6±125.6±1.295142.5285210
13 1/213±0.524.6±128.6±1.280120240260
16 5/816±0.528.2±132.2±1.26191.5183310
19 3/419±0.533.0±137.0±1.56090180350
251   25±0.839.0±143.0±1.54770.5141430
321 1/432±0.847.0±151.0±1.54567.5135530
381 1/238±153.8±1.258.0±1.54060120660
512   51±167.2±1.271.2±1.54669130820
642 1/264±180.2±1.584.2±23552.51051100

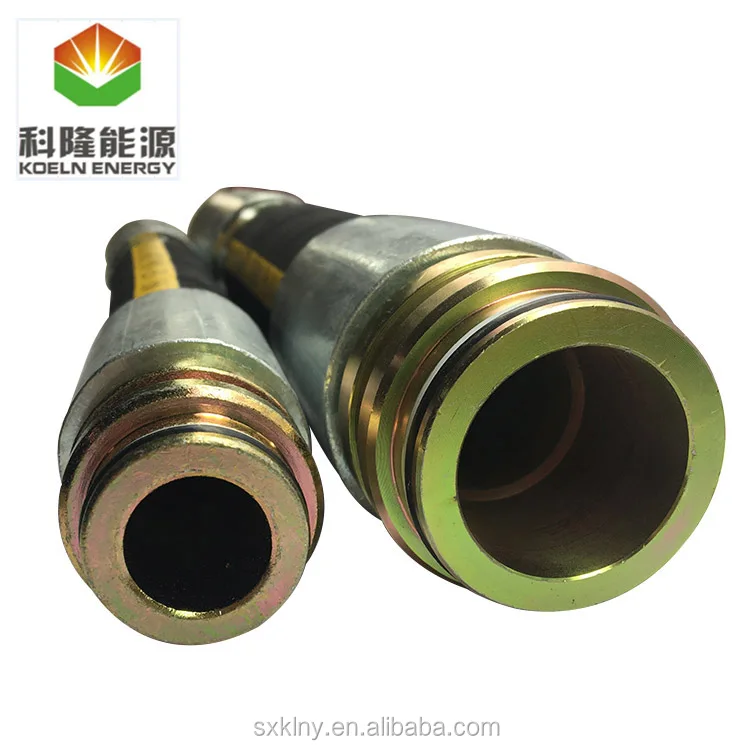

Product Show



HTB1L25eJXXXXXcWXVXXq6xXFXXXG.jpg_350x350_

 7-1







Certifications

.jpg



Packaging & Shipping
Packaging Details : PE film or weaving belt by rolls or as your request
Delivery Time : Shipped in 10-20 workdays after payment

Shipping methods: By international Express , By air or By Sea.
